Miscellaneous

Finite State Machines

A computational model of a system that has distinct states. The system can transition between these states based on external events.

Example of a Turnstile State Machine

Types of State Machines

• Mealy Machine
• Moore Machine

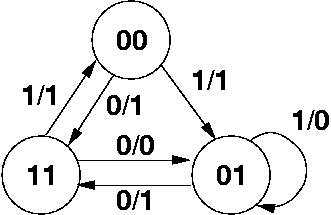

Mealy Machine

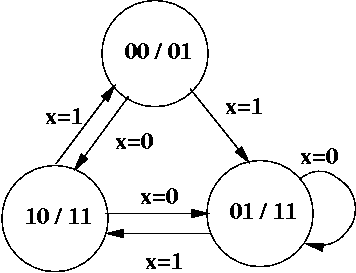

Moore Machine

Cellular Automata

A grid of cells which can have a state of on or off (also referred to as "alive" or "dead").

The transitions between these states are determined by the number of living cells that exist around the current cell.

Neighborhoods

• Moore Neighboorhood
• Von Neumann Neighboorhood

One Set of Basic Rules (Game of Life)

• If the cell is "alive" and has more than a set number of neighbors (usually 4), the cell will "die of overcrowding".
• If the cell is "alive" and has less than a set number of neighbors (usually 2), the cell will "die of loneliness".
• If the cell is "dead" and has more than a set number of neighbors (usually 3), the cell will "be born".

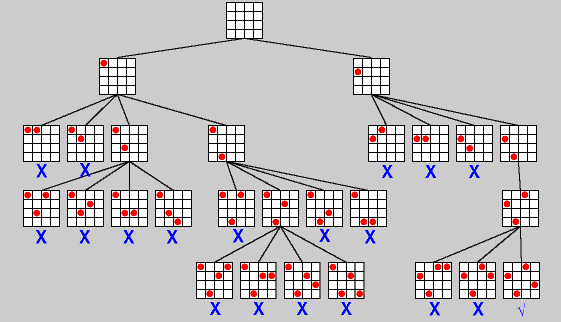

Backtracking

Sudoku Example

Sudoku Backtracking Code

# Takes a partially filled-in grid and attempts to assign values to
# all unassigned locations in such a way to meet the requirements
# for Sudoku solution (non-duplication across rows, columns, and boxes)
def solve_sudoku(arr):

    # 'l' is a list variable that keeps the record of row and col in find_empty_location Function
    l=[0,0]

    # If there is no unassigned location, we are done
    if(not find_empty_location(arr,l)):
        return True

    # Assigning list values to row and col that we got from the above Function
    row=l[0]
    col=l[1]

    # consider digits 1 to 9
    for num in range(1,10):

        # if looks promising
        if(check_location_is_safe(arr,row,col,num)):

            # make tentative assignment
            arr[row][col]=num

            # return, if sucess, ya!
            if(solve_sudoku(arr)):
                return True

            # failure, unmake & try again
            arr[row][col] = 0

    # this triggers backtracking
    return False


Memoization

A type of dynamic programming where past values are saved in a table for faster computation later in a program's execution.

Chip's Memoization Code

def memoize(F):
	# A hash table for storing previous states
	hashed_states = {}

	def memoized_F(*args):
		# if we haven't memoized this state, calculate
		# it. Then return it
		if args not in hashed_states:
			hashed_states[args] = F(*args)

		return hashed_states[args]

	return memoized_F

@memoize
def fibonacci(N):
	if N is 0 or N is 1:
		return N
	else:
		return fibonacci(N-1) + fibonacci(N-2)
